Fully Automatic Toroidal Winding Machine
Key Features
- PLC Controlled Precision Toroidal Winding Machine
- High Speed Slider, Belt and Gear Winding System
- Touch Screen HMI for easy programming!
- Zero Turns Error with Turns Error Eliminator Function
- Maintenance Free!
- Multi-Level Progressive Winding for your most complicated applications
- Precise Turn by Turn Layered Winding with the Gear System!
Jovil Universal Zhongshan Ltd is proud to present our PLC controlled Precision SMC-2E Toroidal Winding Machine. The SMC-2E is able to accept a wide variety of winding heads which ranges from Slider Winding, Belt Winding to Gear Winding System.With the array of winding heads choice on a single SMC-2E Base Machine, you are able to complete most of your winding applications within your production budget!
With the touch screen HMI design and Multi-Level Progressive Winding Program, programming is made simple for the most complicated winding applications. The SMC-2E also has a turns error eliminator for accurate turns count. The use of a 1KW 2000RPM DC brushless motor saves your engineers free of worries for maintenance. A dream come true for every toroidal transformer production line.

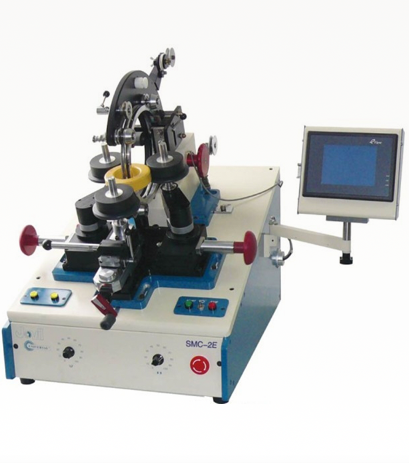

Model SMC-2E
For More Information
Complete the form below to know more about Fully automatic Toroidal Winding Machine Model SMC-2E
Submit your information now for us to know more
about your applications and requirements. We will get back to you most efficient and cost-effective set-up.
Specification/Capabilities
- Maximum Wire Size: #8 AWG (3.25 mm)
- Minimum Wire Size: #38 AWG (0.1 mm)
- Maximum Coil O.D: 12.00" (304.8 mm)
- Minimum Coil O.D: 1.750" (44 mm)
- Minimum Coil I.D: 0.500" (12.7 mm)
- Maximum Coil Height: 3.500" (88.9 mm)
- Winding Speeds: Variable to 1500 TPM
- Wire Spacing: Programmable with Controller
- Segment Winding: Programmable with Controller
- Progressive Winding: Programmable with Controller
- Deceleration Control: Programmable with Controller
- Acceleration Control: Programmable with Controller
- Shuttle Head Motor: 1KW-2000RPM
- Power Requirement: 220V, 50-60Hz
- Crated Dimensions: 75 x 105 x 105cm
- Crated Weight: 180 kg
We, Jovil Universal Zhongshan have done the latest revelation in Winding Technology and much sort after by the coil winding Industry with the birth of the hands free toroidal coil production system, dreams of the coil winding industry have virtualized.
Being an impeccable state of the art system is capable of winding the most
unimaginable miniature toroidal coils. The latest invention increases the production output coupled with unmatchable quality standards. The technological phenomenon eliminates the need for operators, thus saving thousands of dollars in manpower hours.
The PLC Touch Screen helps my operator to program our complicated applications easily. My Pre-school kid would be able to use the program too!
-Rob Salaburu, USAThe tension on the Gear Head helps my production with the winding tension. Helps with different wire gauges.
-Nattapong Mol, ThailandIf you need stability and very uniform winding, Jovil Universal’s Machines are second to none.
-David Tay, Singapore
